A Heat Pipe Design for ARIES-ST Center Post

ARIES Electronic Project Meeting
December 4, 1998

Previous Slide

Next Slide

Because the design of an inverted heat pipe is not practical the evaporator section is extended 4m under the midplane.

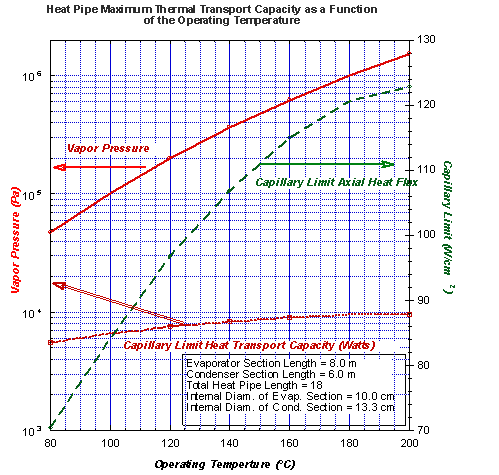

Fig. 4. Maximum thermal transport capacity of the ARIES-ST Center Post Heat Pipe.
