Action Items

  1. Configuration and Maintenance

    1. Jan. 14: Preliminary definition of integrated power core geometry and maintenance approach
    2. March 6: Detailed definition of integrated power core geometry and maintenance approach (H&CD ports, vacuum ports, clearances, plumbing routing) - assess feasibility of providing inboard strike plate vacuum pumping.

  2. Heating and Current Drive

    1. March 9: Select materials and define geometry/location/angle for machine integration and assessment

  3. PF and TF Magnets

    1. Dec. 10: Obtain data from Bromberg including detail substantiation of magnet cost estimate plus magnet shape, cross-section, and required structure.

  4. Vacuum Vessel

    1. Jan. 14 Definition of integrated geometry

  5. Divertor

    1. Jan. 14: Obtain from Petrie data on power flows to inboard and outboard regions

Drawings

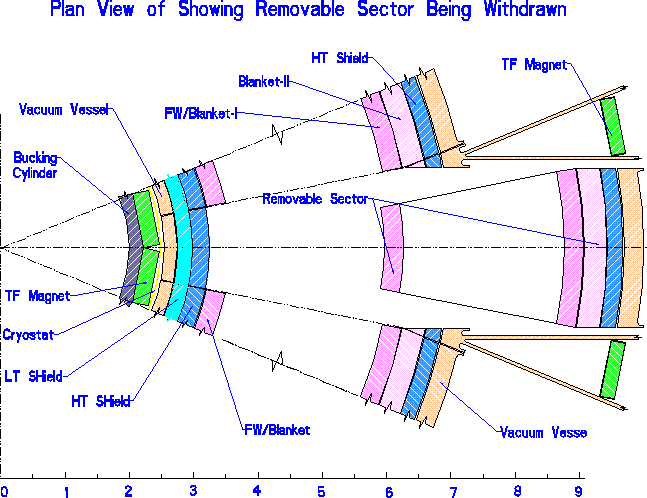

  1. ARIES-AT Plan view
  2. ARIES-RS Plan view

  3. ARIES-AT Elevation view
  4. ARIES-RS Elevation view
